FIT2D for On-line Display

As well as an ``off-line'' data analysis program, FIT2D may be used as an ``on-line'' data display and manipulation program. Figure 13 shows the ON-LINE CRYSTALLOGRAPHY interface. Data may be input and displayed as with the other menus, and additionally the AUTO INPUT button allows files in a sequence to be automatically input and displayed as they are saved by the data acquisition system. An optional ``alarm'' may be set which will ring if the time for an image to appear is greater than a specified length.

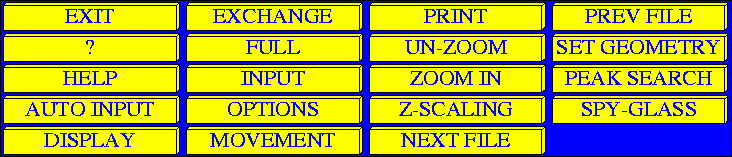

Figure 13: ON-LINE CRYSTALLOGRAPHY Interface Menu


\includegraphics [width=160mm]{on_line_menu.ps}
