The POWDER DIFFRACTION (2-D) Interface INPUT command is
different from other INPUT commands in that it has an additional
graphical form to control correction of spatial distortion and
non-uniformity of intensity response on input.
The initial selection of the input file and format is the same as the
other INPUT commands. See Section 5.1,
Page for further information.
When the raw data has been input a graphical form similar to the one
shown in Figure 33 is displayed.

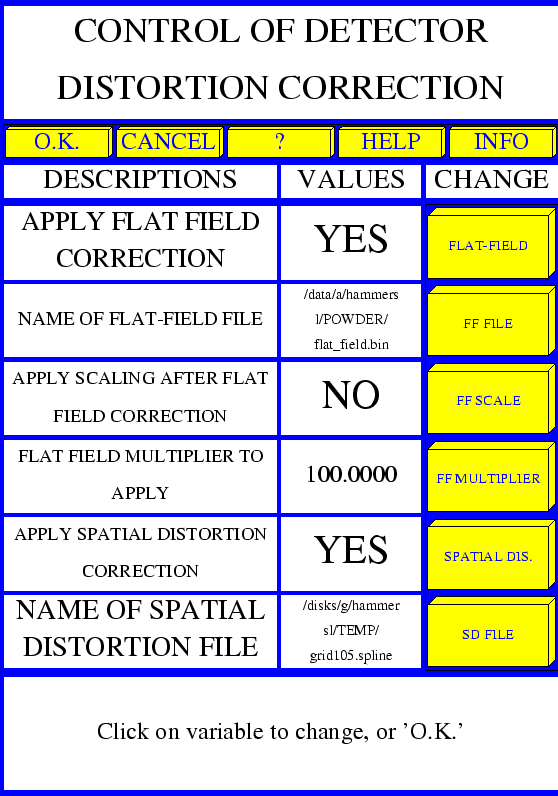

Figure 33:
The Distortion Correction Control Form
|
The form allows the following options:
- FLAT-FIELD: Controls the application of a flat-field correction
to the data immediately on input. If YES is selected the input data
will be divided pixel be pixel by the data input from the file defined
by FF FILE.
- FF FILE: This uses the file selection tool to input a file
to be used for flat-field correction.
- FF SCALE: If the flat-field file data has not been normalised
you may want multiply the data by a scale factor. In this case, this should
be set to YES. The multiplier is set with FF MULTIPLIER.
- FF MULTIPLIER: The scale factor to multiply the result of
any flat-fielded data.
- SPATIAL DIS.: Control correction for spatial distortion or not.
If YES then the file defined by SD FILE is used to define the
distortion function.
- SD FILE: This uses the file selection tool to input a file
to be used for the spatial distortion correction.
As any spatial distortion correction is applied, a progress report is
output in the terminal window.
