FIP2 is available to the users since 1 October 2021. Apply now for beamtime through the Soleil synchrotron interface!

The beamline FIP-BM30A ended operation on 20 November 2018 and has now been replaced by FIP2-BM07 upon ESRF-EBS upgrade.

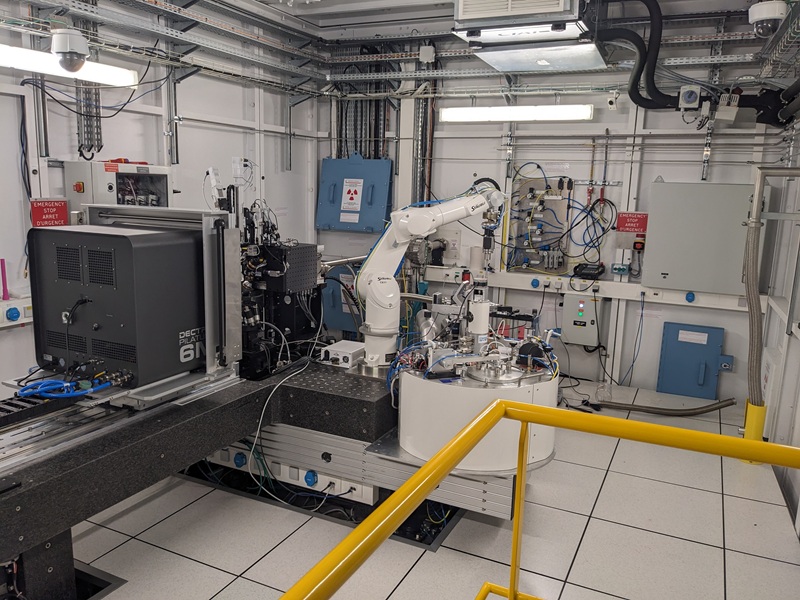

FIP2 (French beamline for Investigation of Proteins) is located on a Bending Magnet section 07 (BM07) of ESRF. It is especially dedicated to crystallography of biological macromolecules. This beamline can be used either for standard diffraction or for multiwavelength diffraction, using anomalous dispersion.

Its optics can deliver a focused beam on a fixed sample position in a large energy range (6-20 keV. The beam size can be adjusted between 100 x 100 and 500 x 500 µm^2.

FIP2 offers the following capabilities:

  • High-throughput screening of cryocooled crystals
  • (Multiwavelength) anomalous diffraction experiments
  • On-line UV-Vis absorption microspectrophotometry
  • Humidity-controlled experiments

The FIP2 sample storage dewar has been recently upgraded and can now accept Unipuck standard exclusively. All loops must be mounted on B5 base (Spine type) with 21 mm pin length.

The beamline control is performed by the popular "MXCuBE3 " interface to be consistent with other similar beamlines around the world. Sample (meta)data are handled and stored by ISPyB.

Here is the range of energies available on BM07-FIP2 with respective accessible resolutions:

keV 5 8 12.65 20
Wavelength (Ang) 2.48 1.55 0.98 0.62
Resolution (Ang) 2.447 1.529 0.967 0.612
