Figure 104

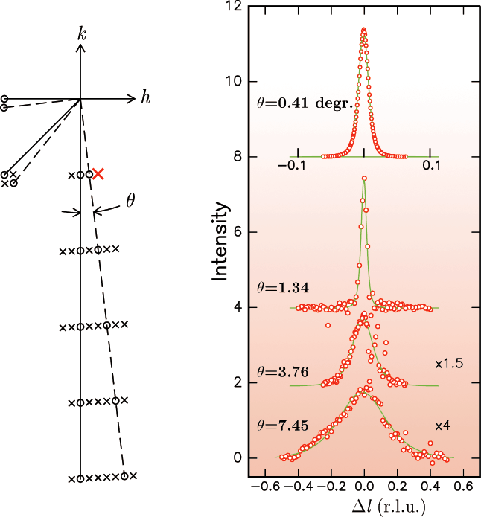

Fig. 104: The diffraction signal, red points, from the interface deformation field in X-ray scans perpendicular to the interface of bonded silicon wafers with twist angles . The left panel shows for both crystals the reciprocal lattice plane parallel to the interface and the red cross is the in-plane coordinate of the scans to the right.
