X-ray Raman spectroscopy probes redox dynamics in lithium-ion battery cathodes

With the growing demand for electric vehicles, there is an urgent need for lower-cost, longer-lasting lithium-ion batteries that offer enhanced charge storage capabilities and stability over thousands of cycles. Nickel-rich layered cathodes based on LiNiO₂ are being developed to facilitate greater lithium intercalation, while reducing dependence on expensive and toxic cobalt. However, the specific roles of different redox centres in LiNiO₂ and their connection to degradation processes remain unclear.

Recent studies have suggested that molecular O₂ may play a role in the bulk redox process at highly delithiated states [1,2], based on signatures detected in O K-edge Resonant Inelastic X-ray Scattering (RIXS) during high-voltage charging. However, soft X-ray techniques like RIXS can only probe less than 10% of the few micrometre-sized cathode particles used in these studies, making the attribution of bulk molecular O₂ redox processes uncertain. Therefore, understanding oxygen redox in charge compensation in LiNiO₂ requires methods that can provide comparable information across depths ranging from tens of nanometres to several micrometres.

To address this, XRS was employed at beamline ID20 as a bulk-sensitive probe of both the O K- and Ni L_3,2-edges, enabling a direct comparison with more surface-sensitive soft X-ray absorption spectra (XAS). By tuning the incident energy to 10 keV and recording inelastically scattered photons with energy loss events near the O K- and Ni L-edge, XRS can probe shallow O 1s → 2p and Ni 2p → 3d transitions. This provides information comparable to soft XAS but with a significantly greater depth of around 10 μm.

This study combined various X-ray spectroscopies to obtain a depth-resolved (ranging from 10 nm to 10 μm) analysis of the redox processes in LiNiO₂, distinguishing reversible bulk redox activities from near-surface degradation. XRS indicates continuous changes in both the O K- and Ni L_3,2-edges throughout delithiation, confirming that charge compensation occurs via Ni-O rehybridization, with a corresponding decrease in electron density at oxygen sites as lithium is removed.

As shown in Figure 1a, the O K pre-edge, associated with transitions from O 1s → O 2p-Ni 3d hybridized states, intensifies and loses its asymmetry, reflecting a reduction in electron density. Importantly, no significant feature is observed at ∼531.5 eV, where one would expect the molecular O₂ signature detected by RIXS [1,2].

Click image to enlarge

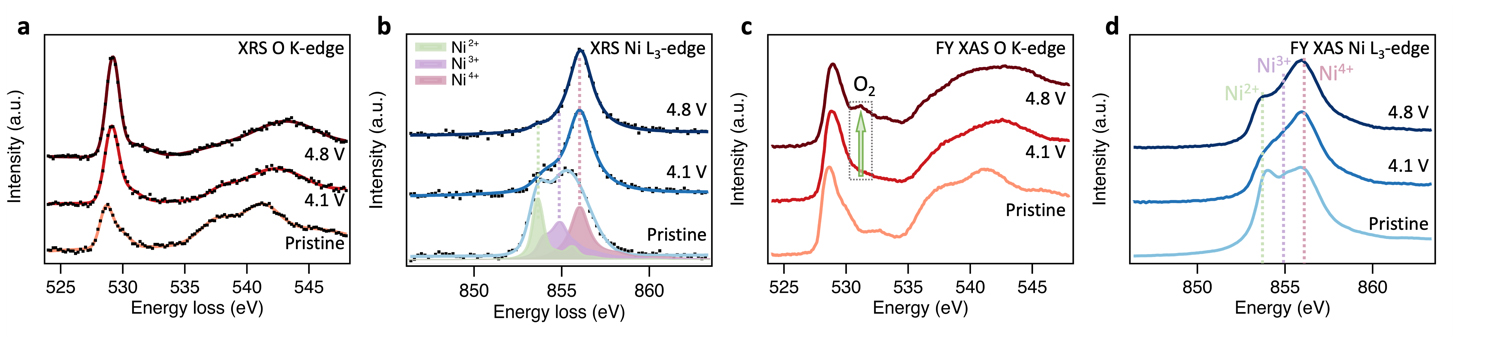

Fig. 1: Depth-resolved core-loss spectra of LiNiO₂ cathode at different states of charge (SoC). a) and b) XRS results (∼10 μm information depth) for the O K-edge and Ni L₃-edge core-loss spectra of LiNiO₂ electrodes at varying SoC. Experimental XRS data are marked by black dots and represented by smooth solid lines. Charge transfer multiplet calculations for formally Ni²⁺ (green), Ni³⁺ (purple), and Ni⁴⁺ (pink) environments are included. c) and d) FY-XAS results (∼200 nm information depth) for the O K-edge and Ni L₃-edge.

Focusing on the Ni L-edges (Figure 1b), XRS reveals that in pristine LiNiO₂ materials, three nickel environments coexist: Ni²⁺, Ni³⁺, and Ni⁴⁺ [3]. During lithium removal upon charging, Ni²⁺ first converts to Ni⁴⁺, followed by the conversion of Ni³⁺. By the time the voltage reaches 4.8 V, the XRS signal is mainly dominated by Ni⁴⁺ species. The continuous increase in Ni⁴⁺ and the corresponding changes in the O K-edge confirm that charge compensation involves rehybridization between nickel and oxygen centres; however, there is no evidence that molecular O₂ plays a significant role in the observed capacity.

In contrast, the near-surface region of LiNiO₂, probed using Fluorescence Yield (FY)-XAS (with an information depth of about 200 nm), exhibits features of trapped molecular O₂ in the O K-edge when charged to potentials above 4.1 V (Figure 1c). This is accompanied by an increased presence of Ni²⁺ in the Ni L₃-edge (Figure 1d). As the molecular O₂ signature and Ni²⁺ features grow in FY-XAS, the intensity of the O K pre-edge peak and the Ni⁴⁺ component are suppressed compared to the XRS results. This suggests that molecular O₂ formation occurs near the surfaces of LiNiO₂ and is associated with nickel reduction, leading to the development of a denser NiO-like reduced surface layer that hinders lithium transport.

Notably, bulk-sensitive XRS (Figure 1a, 1b) shows no indication of significant O₂ formation or nickel reduction, even after charging to 4.8 V. This highlights the critical connection between the nickel reduction to Ni²⁺ near the cathode surface and the formation of molecular lattice O₂ in that region, as supported by RIXS data [1,2].

Similar trends are observed with more surface-sensitive Total Electron Yield (TEY)-XAS measurements (with ∼10 nm information depth), and scanning transmission electron microscopy of cross-sections of electrodes confirms that the reduced surface layer forms only at the regions in contact with the battery electrolyte. This highlights that molecular O₂ formation in LiNiO₂ is linked to near-surface degradation, rather than to reversible redox behaviour.

In conclusion, this work emphasizes the importance of integrating bulk- and surface-sensitive techniques to distinguish between bulk redox and surface degradation processes. The results indicate that redox activity in the bulk of LiNiO₂ cathode particles occurs via rehybridization between nickel and oxygen centres across the entire potential range examined (3.0 – 4.8 V).

Above 4.1 V, molecular O₂ forms in the near-surface region of LiNiO₂ particles in contact with the electrolyte, but this process does not contribute to the reversible capacity. Instead, the emergence of molecular O₂ is associated with nickel reduction, which creates a reduced surface layer that obstructs lithium transport.

Overall, this research provides new insights into the surface instability of LiNiO₂ at high voltages, highlighting the need for strategies such as cathode coatings, composition gradients, and electrolyte formulations to stabilize nickel-rich cathode surfaces.

XRS, as a hard X-ray technique, can measure shallow absorption edges with bulk sensitivity and minimal sample environment restrictions. It is a powerful tool for revealing the bulk redox behaviour of electrode materials for next-generation batteries.
