Room temperature ionic liquids (RTILs) are comprised of molecular ions. They are interesting materials from a physical point of view as they allow us to modify the interactions between the molecular ions as well the interaction with other materials by simply modifying the individual ionic molecules chemically [1]. To date several thousand ionic liquids have been synthesised and many of them are available from commercial sources.

Room temperature ionic liquids are also very promising candidates for a variety of new technological applications, such as solvents in green chemistry, catalysis, batteries, and fuel and solar cells. Although crucial for understanding their properties in applications, very little is known about the structural arrangement of the anions and cations at solid interfaces. In order to access these interfaces, high energy X-ray reflectivity (E = 72.5 keV) at the instrument HEMD, for high-energy microdiffraction, at beamline ID15A has been employed, which is an ideal tool to reach deeply buried interfaces within bulk samples. The measured X-ray reflectivity could then be used to extract information on the laterally-averaged electron-density profile at the RTIL/Al2O3 interface.

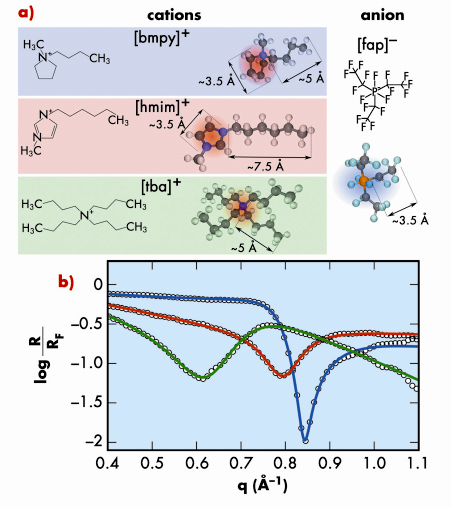

Fig. 31: a) Sketch of the molecular ions: three different cations have been combined with the [fap]– anion. b) Normalised high energy X-ray reflectivities of the three different RTILs in contact with a Al2O3 (0001) surface. The lines are best fits using a modified distorted crystal model ([fap]–[bmpy]+: blue line, [fap]–[hmim]+: red line, [fap]–[tba]+: green line).

Systematic studies of the interfacial structure as a function of composition and temperature were performed with several RTILs at an Al2O3 (0001) surface. By choosing different combinations of anions and cations, it was possible to tune the ion-ion and ion-substrate interaction. By changing the temperature, the ratio between entropy and interfacial energy could be varied, driving the system closer to a disordered liquid or interfacial ordering, respectively. Figure 31 shows the normalised high energy reflectivity for three different RTILs containing the same anion [fap]–. All three measurements show distinct features in the normalised reflectivity which could be attributed to pronounced molecular layering at the RTIL/Al2O3 interface. The measurements are perfectly reproduced by a modified distorted crystal model. Figure 32 shows an example, the reconstructed density of the interface [fap]–[bmpy]+/Al2O3(0001). The first layer at the interface is comprised of cations, which may seem counterintuitive at first sight, followed by a second layer of anions, thus ensuring charge neutrality. Additional measurements employing a Kelvin probe confirmed that the substrate is negatively charged, thereby explaining the formation of a purely cationic layer directly at the interface. The molecular layering decays exponentially with a decay length of approximately two molecular double layers. Similar results have been found for the other two interfaces [fap]–[hmim]+/Al2O3 and [fap]–[tba]+/Al2O3.

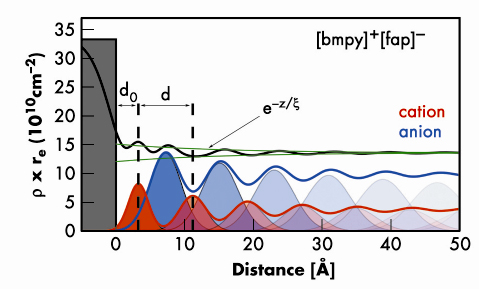

Fig. 32: Electron density profile of the interface [fap]–[bmpy]+/Al2O3 at T = –15°C: cation (red), anion (blue) and total (black) electron densities. Red and blue lines indicate cation and anion Gaussian distributions contributing to the respective partial electron density profiles (solid lines); black line, total electron density profile; grey bar, electron density of the sapphire substrate without roughness.

Dilute aqueous electrolytes containing water-screened weakly-interacting ions have been successfully described by mean field theories of charge double layers. This description neglects, however, correlations between ions. In contrast, the interaction between the oppositely-charged RTIL ions is very strong because no other molecule is available for screening. The ions are, therefore, strongly correlated. Such correlations also lead to other apparently counterintuitive phenomena like charge inversion and attraction between like-charged objects. Our findings are corroborated by recent molecular dynamics simulations of (simpler) RTILs in slit pores with Lennard-Jones potentials for the dispersion interactions of the molecules as well as for the wall-molecule interaction, where a clear separation of the anions and cations into distinct layers was also observed [2]. Information on the structure of such interfaces should help us to develop a deeper understanding of their properties, such as their transport properties, for future applications.



Principal publication and authors

M. Mezger (a), H. Schröder (a), H. Reichert (a), S. Schramm (a), J.S. Okasinski (a), S. Schöder (a,b), V. Honkimäki (b), M. Deutsch (c), B.M. Ocko (d), J. Ralston (e), M. Rohwerder (f), M. Stratmann (f), H. Dosch (a,g), Science 322, 424 (2008).
(a) Max-Planck-Institut für Metallforschung, Stuttgart (Germany)
(b) ESRF
(c) Physics Department, Bar-Ilan University, Ramat-Gan (Israel)
(d) Condensed Matter Physics and Materials Science Department, Brookhaven National Laboratory, Upton (USA)
(e) Ian Wark Research Institute, University of South Australia, Mawson Lakes (Australia)
(f) Max-Planck-Institut für Eisenforschung, Düsseldorf (Germany)
(g) Institut für Theoretische und Angewandte Physik, Universität Stuttgart (Germany)

References

[1] P. Wasserscheid, T. Welton, Ionic liquids in Synthesis (Wiley-VCH, Weinheim Germany, 2007).
[2] C. Pinilla, et al., J. Phys. Chem. B 111, 4877 (2007).
