Cuprates exhibit high-temperature superconductivity upon doping with charge carriers. Significant efforts have been made to uncover the underlying microscopic mechanism in high-Tc< cuprates, which could ultimately lead to the synthesis of room temperature superconductors that would revolutionise the power transmission and electronics industries. However, this is a great challenge because cuprates are more complex than the framework of weak-coupling theories established in the last century. This complexity manifests itself in the emergence of a number of different quantum phases along with superconductivity. Clarification of the interplay among these phases is necessary to gain further insight.

Recently, experimental evidence on high-Tc cuprates revealed ubiquitous charge density wave (CDW) modulations [1], which coexist with superconductivity. This is intriguing, since CDW, a state in which valence electrons tend to be localised, and superconductivity, a state in which electrons move freely, possess seemingly opposite electronic properties, implying a non-trivial relationship between the two. To gain insight into this puzzling co-existence, it is necessary to uncover how CDW interplays with other degrees of freedom. Some theories have proposed that the fluctuations of CDW, i.e. a form of CDW dynamics or excitations, could be important for high temperature superconductivity [2], however, the experimental evidence of such CDW dynamics is lacking. With sufficient energy resolution, RIXS can be an ideal probe for CDW dynamics due to its simultaneous sensitivity to excitations (and order) of charge, spin, and orbital characters [3]. The soft X-ray RIXS instrument at beamline ID32 possesses the highest ever energy resolution at the Cu L3 edge, and provides an unprecedented opportunity to tackle this challenge.

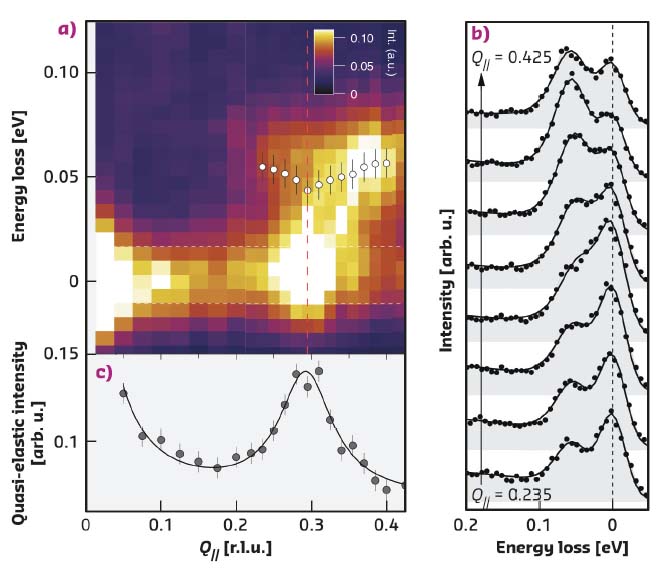

Fig. 93: a) RIXS intensity map of the high-energy resolution data (∆E ~ 40 meV) as a function of energy loss and Q//. The white circles represent the fitted phonon dispersion. b) Energy loss spectra at selected momentum ranging from Q// = 0.235 r.l.u. to Q// = 0.425 r.l.u. The fits (solid lines) are superimposed on the raw data (black circles). c) Averaged intensity in the quasi-elastic region, defined as the region between the two white dashed lines in (a). The solid line is a Lorentzian fit to the data with a background consisting of a constant plus a Lorentzian to account for the tail of the specular reflection peak at Q// = 0.

High-resolution momentum-resolved RIXS was performed on the underdoped bi-layer cuprate Bi2Sr2CaCu2O8+d. Main results are shown in Figure 93. The CDW scattering peak at QCDW ~ 0.30 r.l.u. in the quasi-elastic region and a branch of phonon excitations at ~ 60 meV, attributed as the Cu-O bond-stretching modes, are clearly resolved in the RIXS intensity map. Remarkably, the phonon intensity varies non-monotonically with momentum, having a maximum near QA ~ 0.37 r.l.u. The RIXS phonon cross-section directly reflects the momentum-dependence of the electron-phonon coupling strength [4], in stark contrast with the phonon self-energy measured by other techniques, e.g. inelastic neutron or non-resonant inelastic X-ray scattering. As a consequence, RIXS is also directly sensitive to the interference between phonons and underlying charge excitations, i.e. the Fano effect, which can manifest as an intensity anomaly. Thus, the intensity anomaly at QA ≠ QCDW provides evidence for the existence of dispersive CDW excitations that cause a strong Fano interference at the intersection with the bond-stretching phonon. Temperature-dependent measurements and theoretical calculations of RIXS phonon cross-section were also performed to support these observations.

The dispersive CDW excitations, the phonon anomaly, and the wave vector of the CDW found in this research provide a comprehensive momentum space picture of complex CDW behaviour and may point to a closer relationship with the pseudogap state. These results imply that CDW is intimately connected to the electronic structure in high-Tc copper oxides, in addition to the spin and phonon interactions. Future investigations to clarify the relationship among these underlying degrees of freedom would be crucial to uncover the mechanism of superconductivity in these materials.


Principal publication and authors

Dispersive charge density wave excitations in Bi2Sr2CaCu2O8+d, L. Chaix (a,i), G. Ghiringhelli (b,c), Y.Y. Peng (b), M. Hashimoto (d), B. Moritz (a), K. Kummer (e), N.B. Brookes (e), Y. He (f), S. Chen (f), S. Ishida (g), Y. Yoshida (g), H. Eisaki (g), M. Salluzzo (h), L. Braicovich (b,c), Z.-X. Shen (a,f), T.P. Devereaux (a,f) and W.-S. Lee (a), Nature Physics 13, 952-956 (2017); doi: 10.1038/NPHYS4157.

(a) Stanford Institute for Materials and Energy Sciences, SLAC National Accelerator Laboratory and Stanford University (USA)
(b) Dipartimento di Fisica, Politecnico di Milano (Italy)
(c) CNR-SPIN, CNISM, Politecnico di Milano (Italy)
(d) Stanford Synchrotron Radiation Lightsource, SLAC National Accelerator Laboratory, Menlo Park (USA)
(e) ESRF
(f) Geballe Laboratory for Advanced Materials, Stanford University (USA)
(g) National Institute of Advanced Industrial Science and Technology (AIST) (Japan)
(h) CNR-SPIN, Complesso Monte Sant’angelo, Napoli (Italy)
(i) present address: Laboratoire Léon Brillouin, CEA Saclay (France)



References

[1] R. Comin et al., Annu. Rev. Condens. Matter Phys. 7, 369-405 (2016).
[2] S.A. Kivelson et al., Rev. Mod. Phys. 75, 1201 (2003).
[3] L.J.P. Ament et al., Rev. Mod. Phys. 83, 705-767 (2011).
[4] T.P. Devereaux et al., Phys. Rev. X 6, 041019 (2016).
