Vacuum Furnace

Max operating temperature > 1200°C (with Be done)

Max operating temperature 400°C (with Polymer dome)

Stability: ±0.10°C @ 100°C; ±0.15°C @ 200°C

Max Sample Size: 10 × 10 mm2

x-ray technique: reflection / diffraction

A gas-rig with mass flow controllers can be connected

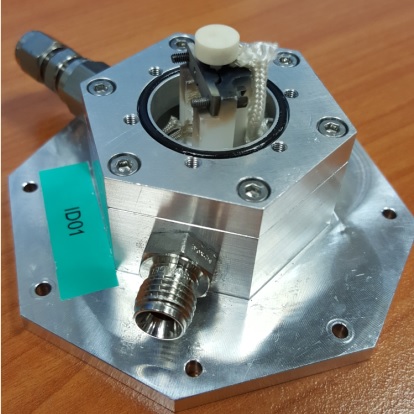

Vacuum Furnace

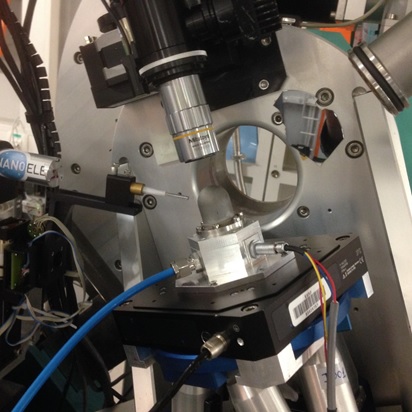

Furnace installed on Beamline hexapod / piezo-positioner

Vacuum Furnace

Furnace installed on Beamline hexapod / piezo-positioner

Inhouse development

Reactor for nano-focused x-ray diffraction and imaging under catalytic in situ conditions
