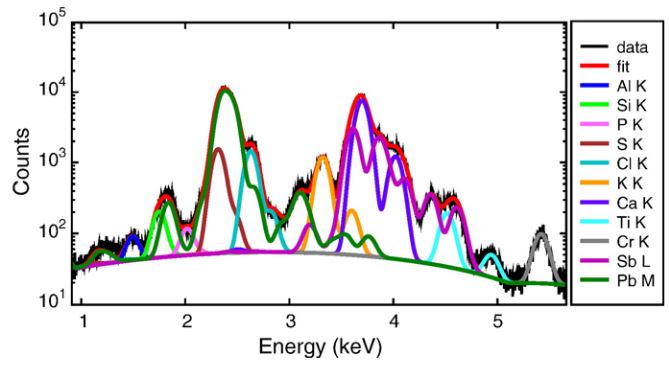

A user friendly program for X-ray fluorescence analysis has been developed at the European Synchrotron Radiation Facility. The program allows interactive as well as batch processing of large data sets and it is particularly well suited for X-ray imaging. Its implementation of a complete description of the M shell is particularly helpful for analysis of data collected at low energies. The code is platform independent (Linux, Windows, MacOS X, Solaris ...) and it is freely available for non-commercial use. Description of the algorithms used and practical examples are presented.

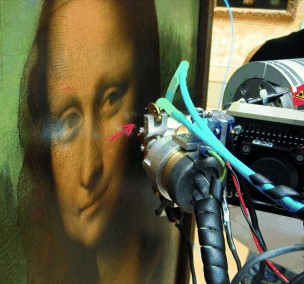

Non‐invasive X‐ray fluorescence spectroscopy was used to reveal the sfumato paint layer stacking method that was used by Leonardo da Vinci to paint the faces in seven of his paintings. A strong diversity in his technique could clearly be seen with this method.

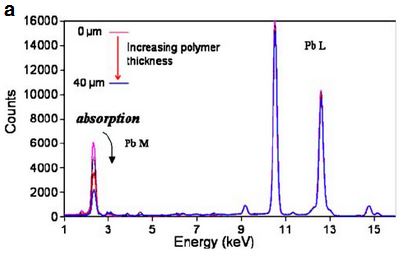

X-ray fluorescence spectrometry (XRF) allows a rapid and simple determination of the elemental composition of a material. As a non-destructive tool, it has been extensively used for analysis in art and archaeology since the early 1970s. Whereas it is commonly used for qualitative analysis, recent efforts have been made to develop quantitative treatment even with portable systems. However, the interpretation of the results obtained with this technique can turn out to be problematic in the case of layered structures such as easel paintings. The use of differential X-ray attenuation enables modelling of the various layers: indeed, the absorption of X-rays through different layers will result in modification of intensity ratio between the different characteristic lines. This work focuses on the possibility to use XRF with the fundamental parameters method to reconstruct the composition and thickness of the layers. This method was tested on several multilayers standards and gives a maximum error of 15% for thicknesses and errors of 10% for concentrations. On a painting test sample that was rather inhomogeneous, the XRF analysis provides an average value. This method was applied in situ to estimate the thickness of the layers a painting from Marco d'Oggiono, pupil of Leonardo da Vinci.

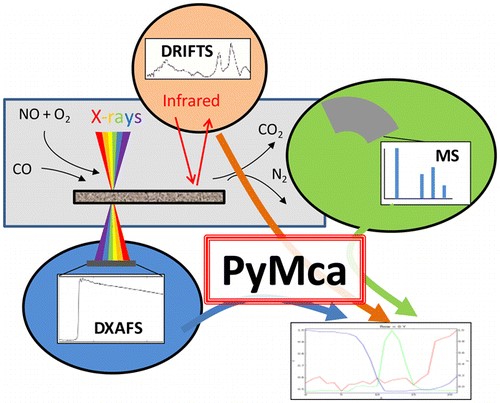

A nonproprietary software package, “PyMca”, primarily developed for X-ray fluorescence analysis offers an easy-to-use interface for calculating maps, by integrating intensity (of X-ray fluorescence, as well as any spectral data) over Regions Of Interest (ROI), by performing per pixel operations or by applying multivariate analysis. Here we show that, while initially developed to analyze hyperspectral two-dimensional (spatial) maps, this tool can be beneficial as well to anyone interested in measuring spectral variations over one or two dimensions, these dimensions being time, temperature, and so on. Different possibilities offered by the software (preprocessing, simultaneous analysis of replicas, of different conditions, ROI calculation, multivariate analysis, determination of reaction rate constant and of Arrhenius plot) are illustrated with two examples. The first example is the Fourier transform infrared spectroscopy (FTIR) follow-up of the saponification of oil by lead compounds. The disappearance of reagent (oil) and formation of products (lead carboxylates and glycerol) can be easily followed and quantified. The second example is a combined extended X-ray absorption fine structure (EXAFS), diffuse reflectance infrared Fourier transform spectroscopy (DRIFT), and mass spectroscopy (MS) analysis of RhAl₂O₃ catalyst under NO reduction by CO in the presence of O₂. It is possible to appreciate, in a single shot, Rh particles’ structure and surface changes and gas release and adsorption in the reaction conditions.
