BM32 X-ray source: Short Bending Magnet

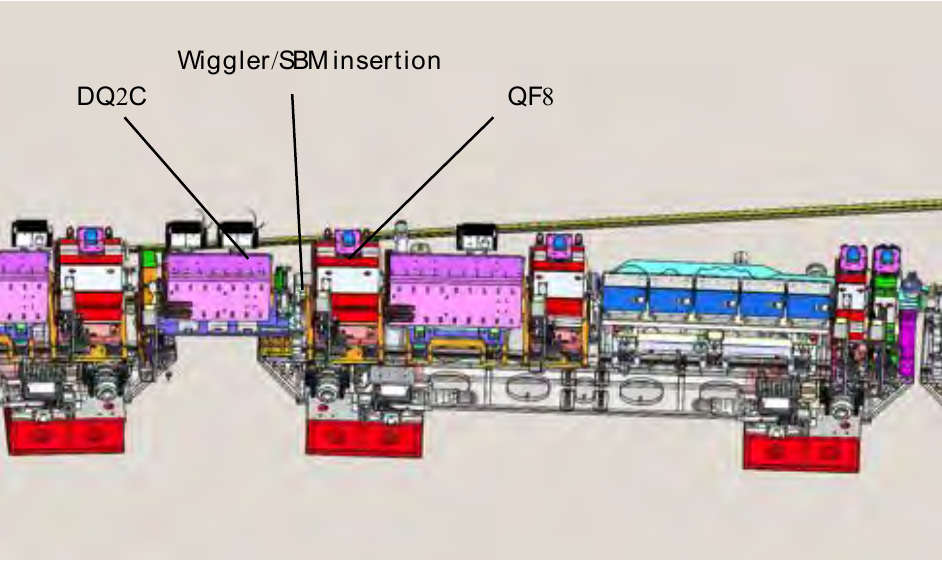

CRG-IF beamline is using photons coming from a short bending magnet located in between two quadrupole trajectory corrector

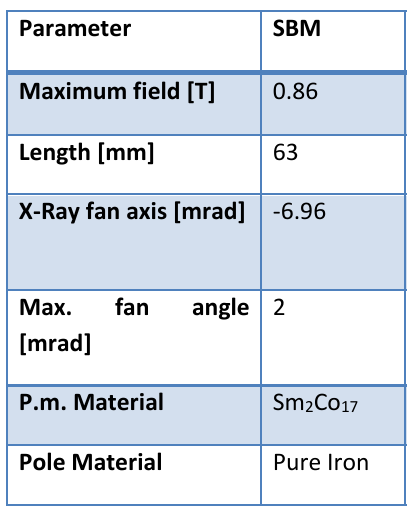

SBM32 X-ray source main parameters

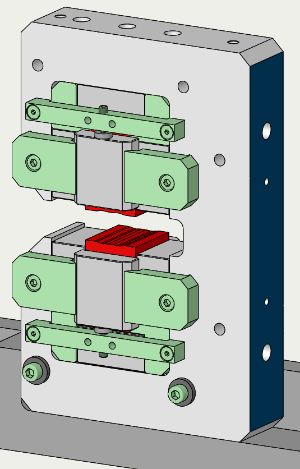

3D view of SBM32

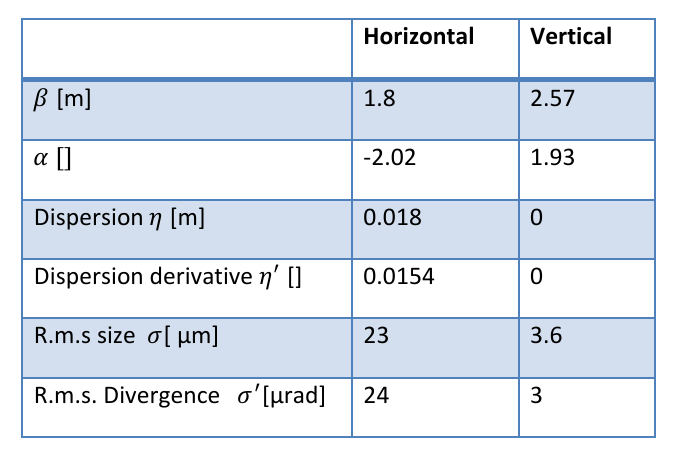

Electron beam parameters at the middle of the SBM32




MAgnetic field of DQ and SBM (1P curve) for BM32 source

same figure with a zoom in SBM (1P curve)

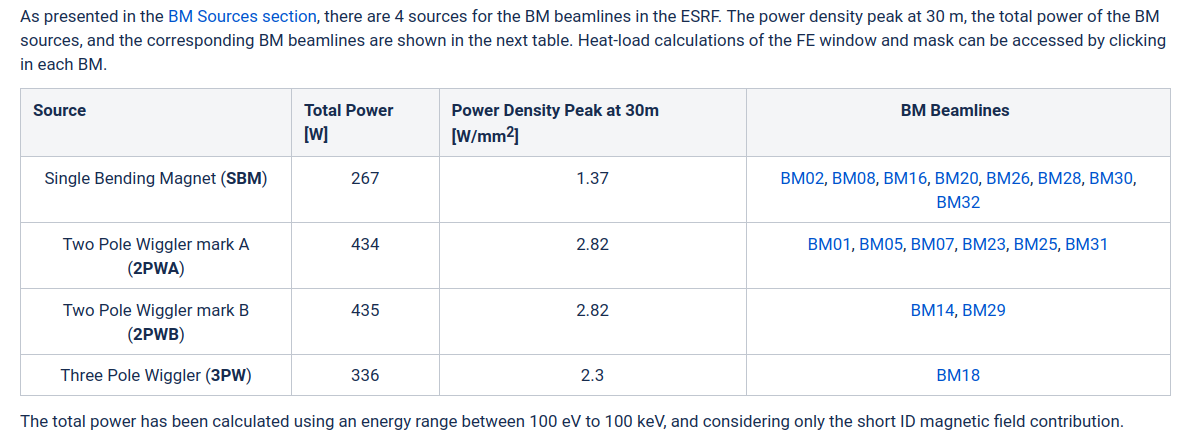

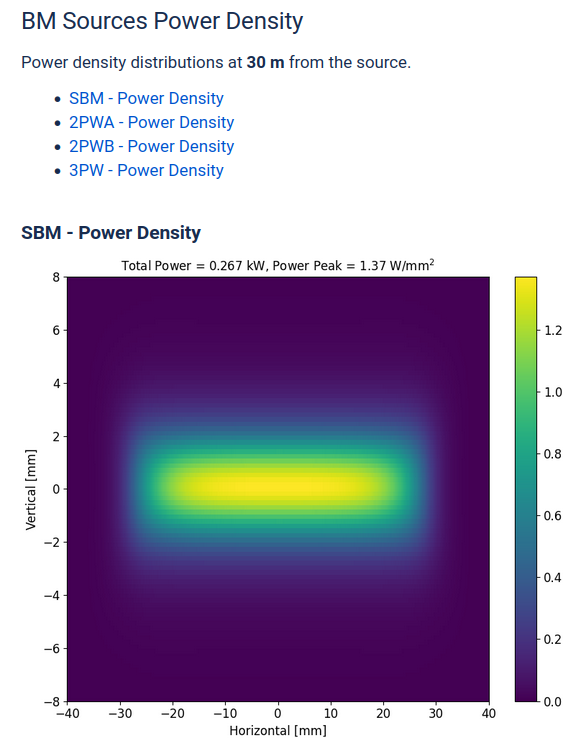

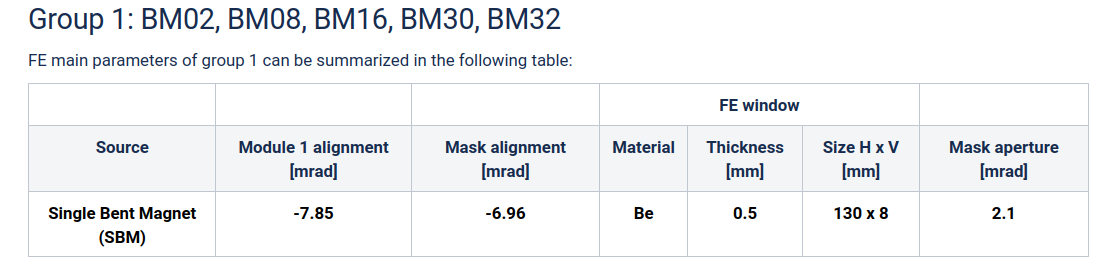

in the confluence page, there are some interesting data:

pdf file for incoming  thermal power from SBM32
