High Pressure Equipment
Large Volume Cell
High Pressure – Large Volume Cell N.1
This High Pressure cell is normally used to measure liquids and gas samples. Mounted on the Cryomech AL125 cryostat it can be cooled down to 25 K.

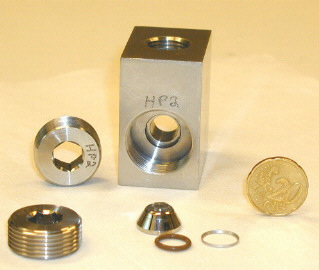

Figure 1 – High Pressure Cell with gaskets, |
Figure 2 – Support and vacuum chamber for the HP Cell. |
Characteristics :
Material: | Inconel or Marval 18 |
Dimension : | 50 x 50 x 30 mm3 |
Maximum pressure: | up to 4 kbar |
Sample length: | 8, 10 or 20 mm |
Windows opening: | 2.3, 3 or 3.5 mm |
Diamond windows: | 6 mm diam. – 1 mm thick |
Temperature range: | 25 K to 423 K |
Gaskets: | O-rings of Viton and Brass |
Samples: | Liquids and gases up to 2 cm3 of volume |
High Pressure – Large Volume Cell N.2
This High Pressure cell is also used to measure liquids and gas samples. It is rather similar to the previous one, but it can reach higher pressures and it can be heated up to higher temperature.

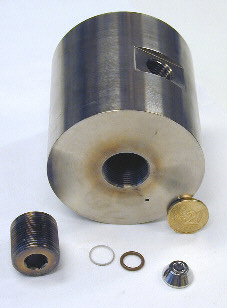

Figure 3 – High Pressure Cell with gaskets, nuts and a diamond window already glued on a cone. |

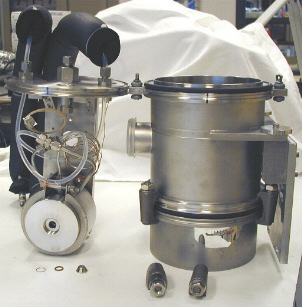

Figure 4 – Support and vacuum chamber for the HP Cell. |
Characteristics :
Material: | Inconel |
Dimension : | 80 mm diam. x 82 mm |
Maximum pressure: | up to 5 kbar |
Sample length: | 10 mm |
Windows opening: | 2.3, 3 or 3.5 mm |
Diamond windows: | 6 mm diam. – 1 mm thick |
Temperature range: | 270 K to 473 K |
Gaskets: | O-rings of Viton and Brass or Copper |
Samples: | Liquids and gases up to 1 cm3 of volume |
