The Beamlines

All thirty of the ESRF's public beamlines have been operational since 1999. Two of these possess two end-stations, so there are thirty-four end-stations in total, which can be run independently. An additional fifteen beamline branches, situated on bending magnets, are devoted to Collaborating Research Groups (CRG). Ten of the CRG beamlines are now in operation (including GRAAL), the others are in the phases of planning, construction or commissioning. Figure 135 shows the location of the beamlines in the experimental hall; a list of the public beamlines is presented in Table 2; and a list of the CRG beamlines in Table 3.

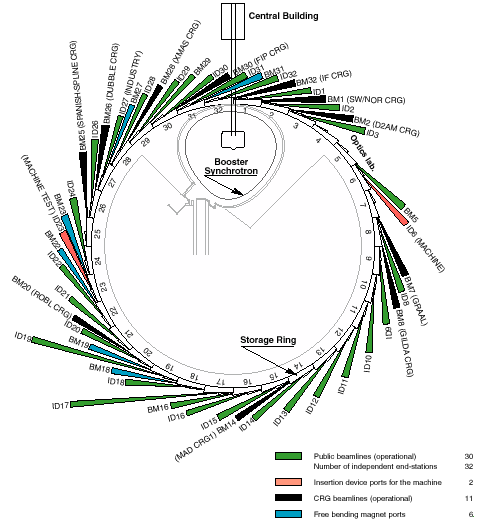

Fig. 135: Experimental hall with the operational and scheduled beamlines (public and CRG beamlines).

Thanks to a decision by the Council in June 2000, the MAD beamline BM14 will be operated jointly by British and Spanish CRG teams until the year 2002. By then the Powder Diffraction beamline will have been transferred from a bending magnet, BM16, to an insertion device, ID31. Then BM16 will also be transformed into a MAD beamline, becoming a Spanish CRG line, while BM14 will become a British CRG line.

Additionally, there is an industrial beamline, ID27, which is used for impurity analysis on silicon wafers. This line has capacity for further expansion to other fields of industrial interest.

Table 2: List of the ESRF public beamlines in operation.

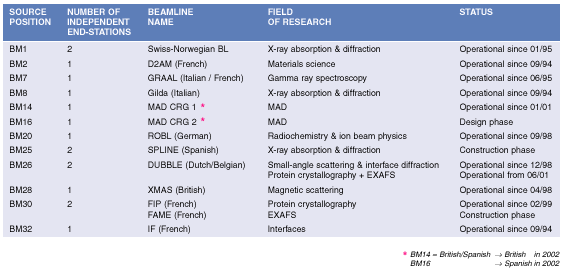

Table 3: List of the Collaborating Research Group beamlines in operation, in construction or in design phase.
