Details of the public ESRF beamlines as well as those operated by Collaborating Research Groups (CRG) are given in Tables 5 and 6. Figure 155 shows the location of the beamlines in the experimental hall.

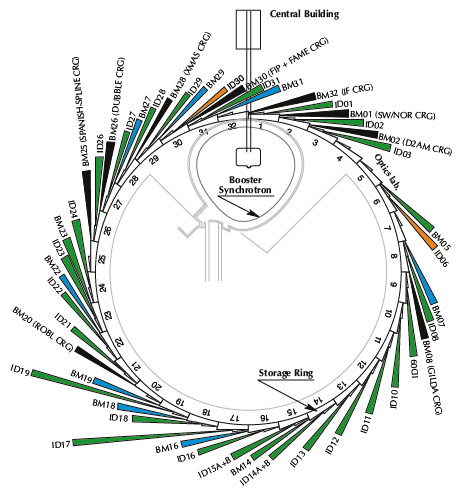

Fig. 155: Experimental hall showing location of the beamlines (public and CRG beamlines)..

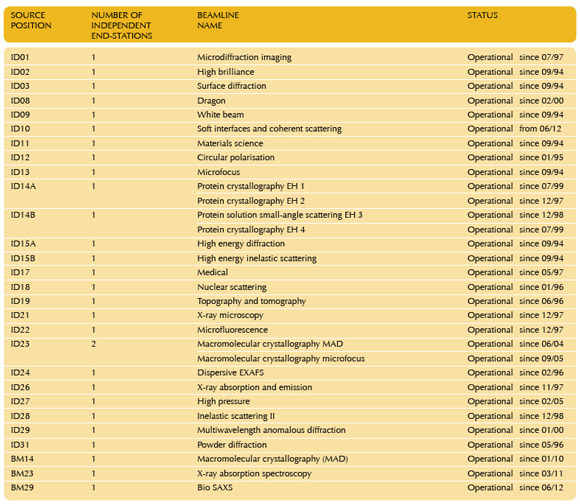

Table 5: List of the ESRF public beamlines.

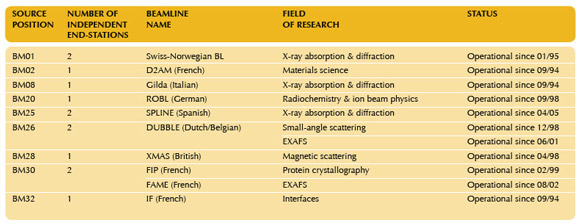

Table 6: List of the Collaborating Research Group beamlines.
