As we move away from oil as a source of petrochemicals, the methanol-to-olefin (MTO) process is becoming a key step in the route from inexpensive, plentiful and even renewable feeds like gas, coal and biomass, to the chemical building blocks we depend on every day. Olefins are a particularly useful group of chemicals which can be transformed into polymers used in anything from plastic bottles to thermal underwear. At present, they are produced mainly by distilling crude oil, however, the MTO route is becoming economically viable. Several plants are under construction in China.

The catalyst in the MTO process is the porous zeotype framework SAPO-34, which suffers from deactivation caused by the build-up of coke in its zeolite cavities. Understanding the progress of this reaction and coke formation in a large, industrial-like reactor is very important in the quest to optimise the process. For example, extending the lifetime of the catalyst before coking could allow fixed bed reactors to replace the current breed of complex and expensive recirculating fluidised bed MTO reactors, leading to a major cost saving. Our earlier research at the beamline BM01A (Swiss-Norwegian CRG beamline) revealed that the MTO process causes significant expansion of SAPO-34 due to the build-up of hydrocarbon intermediates in the catalyst cavities [1]. The catalyst expands as the content of the cavities changes from relatively small reaction intermediates to large, inactive coke molecules. We collected time- and space-resolved data at the high-energy beamline ID15B and used the expansion of the catalyst as an indication of the progress of the reaction in a 4 mm diameter tube reactor. Diffraction patterns were collected every second as the reactor and heaters were moved down through the beam, giving a series of scans along the vertical axis of the reactor. The output from the reactor was analysed with a mass spectrometer. Each pattern was processed using parametric Rietveld methods (up to 500 datasets at a time) and c-axis expansion was plotted against time and position in the reactor. The resulting contour plots are shown in Figure 121.

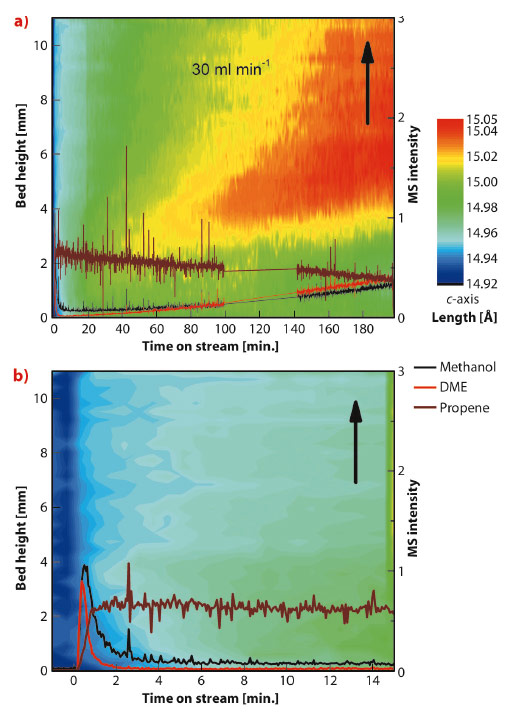

Fig. 121: (a) Time- and space-resolved HEXRD data for the MTO process at 350°C and a flow rate of 30 ml min-1. Mass spectrometry activity data are shown as line plots. (b) The first 15 minutes of the reaction in more detail.

Early in the reaction we see that the initial expansion of the catalyst corresponds to an increase in the production of olefins, while the later deactivation of the reactor bed is correlated to the appearance of highly expanded regions of catalyst in the top section of the bed, caused by inactive coke. The point at which the expansion first appears is determined by the flow rate of methanol and the number of catalytic active sites.

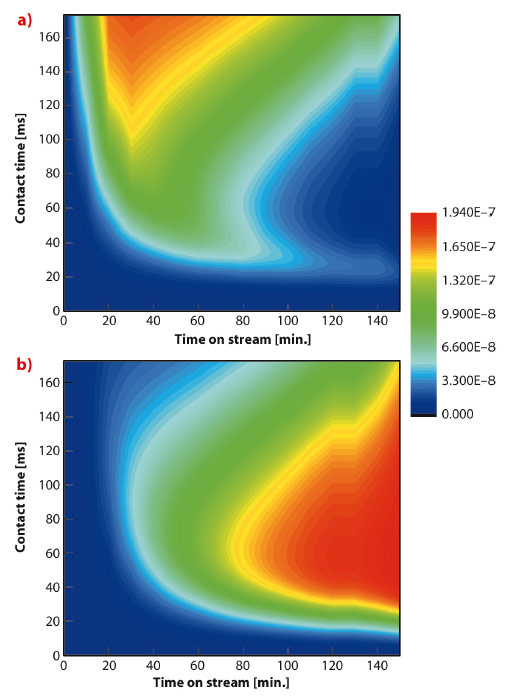

Fig. 122: Simulated bed profiles from the kinetic model with contact time as for a flow rate of 30 ml min-1. Profile (a) shows the development of the intermediates which cause the initial expansion of the catalyst; (b) shows the development of the heavy coke responsible for the final expansion.

Kinetic modelling reproduces the observed behaviour very well (Figure 122), with the initial expansion observed in the experiment following a similar pattern to the modelled behaviour of the hydrocarbon intermediates and the larger expansion in the later stages of the reaction corresponding to the spread of large coke molecules in the model. This model is the first to include the link between methanol feed and increasing coke levels. The results of this work will help to improve the efficiency of the MTO process at an industrial scale.



Principal publication and authors

D.S. Wragg (a), M.G. O’Brien (b), F.L. Bleken (a), M. Di Michiel (c), U. Olsbye (a) and H. Fjellvåg (a), Angew. Chem. Int. Ed. 51, 7956–7959 (2012).

(a) inGAP Centre for Research Based Innovation, University of Oslo (Norway)

(b) Utrecht University Debye Institute for Nanomaterials Science (Netherlands)

(c) ESRF



References

[1] D.S. Wragg, R.E. Johnsen, M. Balasundaram, P. Norby, H. Fjellvåg, A. Grønvold, T. Fuglerud, J. Hafizovic, Ø.B. Vistad and D. Akporiaye, J. Catal. 268, 290-296 (2009).
