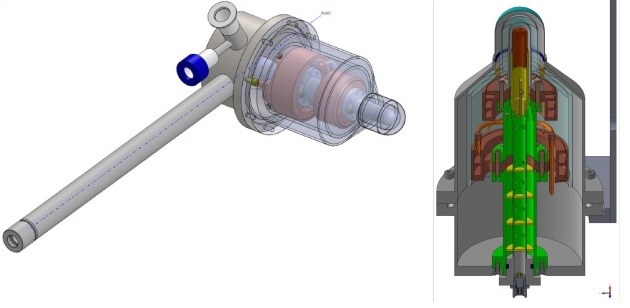

The cryostat can operate in any geometry when equipped with the Be domes or in the horizontal scattering geometry when equipped with a standard vacuum chamber and thin aluminum windows.
The base temperature is 4 K.

He_flow cryostat.jpg

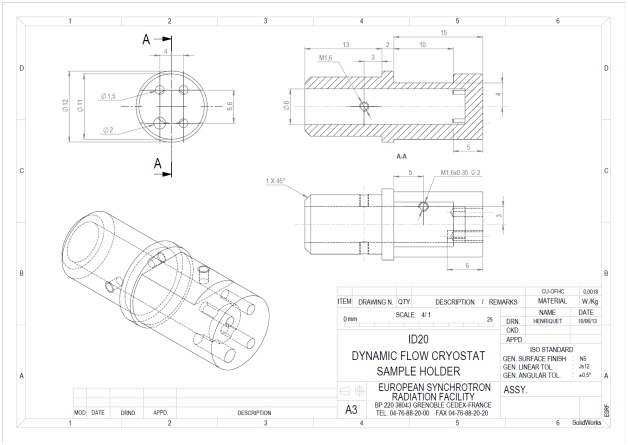

Detailed drawings of the sample holder are shown below (dimensions are given in mm).

Sample holder.jpg
