The sample tower is equipped with 3 rotations and 3 translations for a flexible and precise alignment of the sample in the beam.

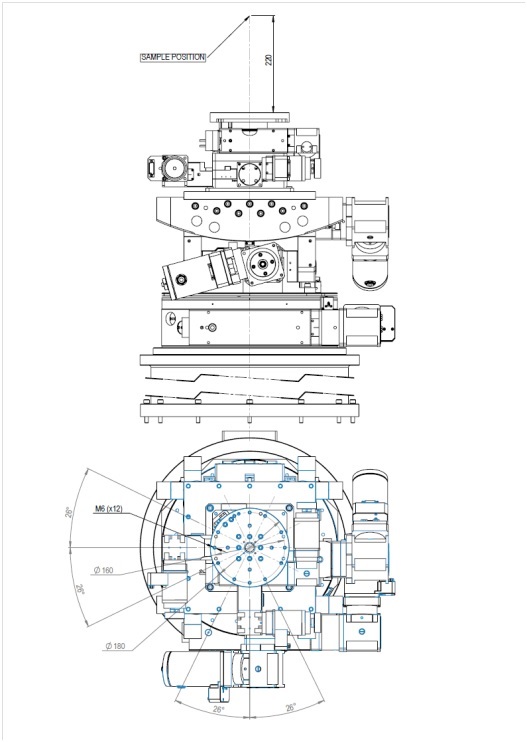

This is shown below (dimensions are given in mm). Note that the sample position is located 220 mm above the sample tower plane.

standard goniometer.jpg

For the standard goniometer heads available at the beamline please refer to:

http://www.xhuber.de/en/product-groups/4-accessories/44-zubehoer-allgemein/goniometer-heads/manual/1003/

http://www.xhuber.de/en/product-groups/4-accessories/44-zubehoer-allgemein/goniometer-heads/special-versions/100501/

http://www.xhuber.de/en/product-groups/4-accessories/44-zubehoer-allgemein/goniometer-heads/special-versions/100502/
