Sample Pillar

The standard mounting for sample environment is a sample pillar with motorised translation and rotation movements. If you want to interface your sample environment to BM26B, please refer to the technical sheet here. (We use M6 screws with 25mm spacing).

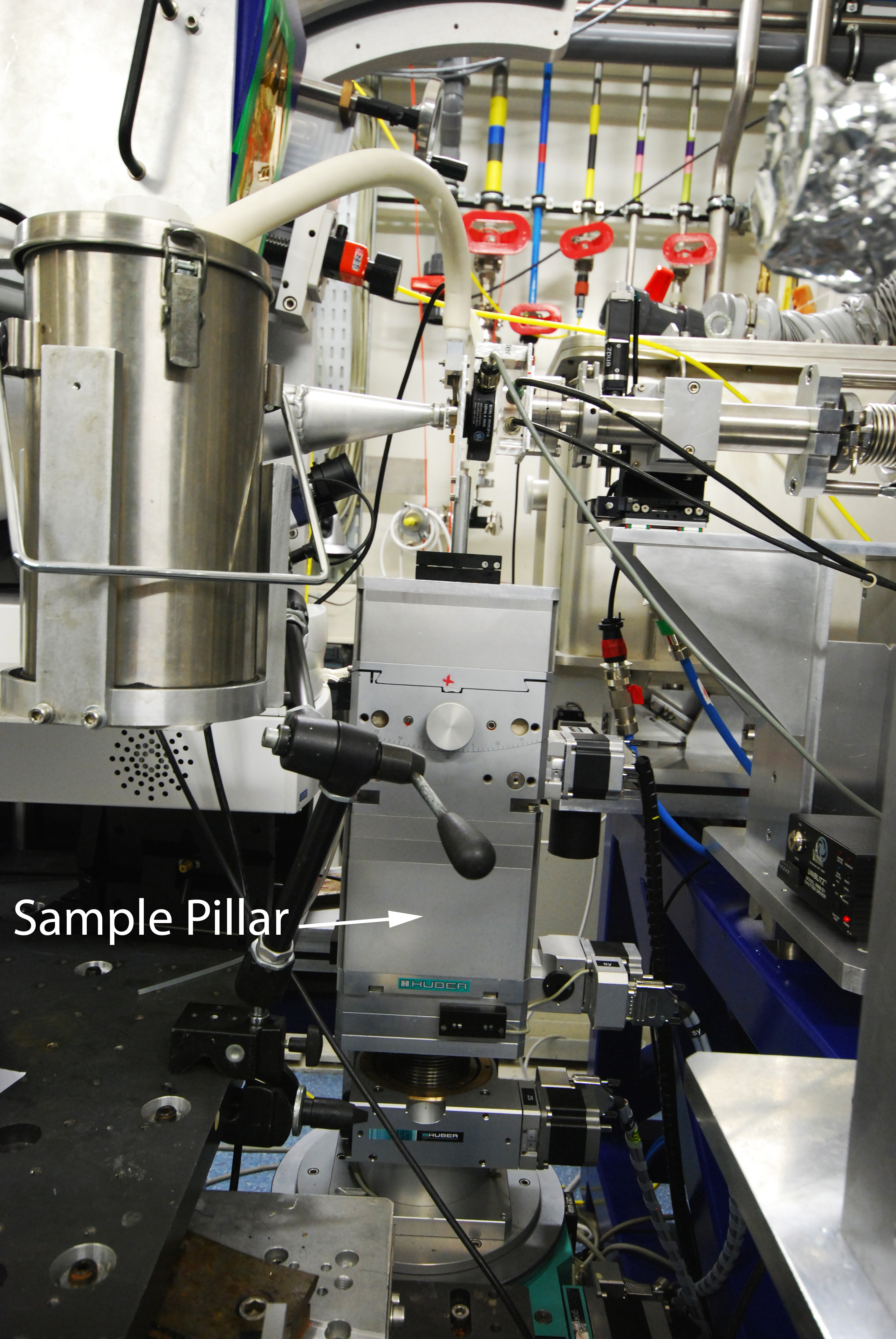

Sample pillar





Sample Pillar motors' specifications



IMG-20191118-WA0007.jpeg IMG-20191118-WA0010.jpeg







Kinematic Base / Magnetic Plate



Magnetic plate Magnetic plate in beamline



Kinematic base KB3X3

Square Base with a Central 1/4"-20 (M6) Through Hole
and Nine 1/4"-20 (M6) Tapped Holes

See Thorlabs

 Mount sample environment on magnetic plate.

If your sample is small enough to fit on the plate, you can use it for your experiment.

Easy to change samples and standardized.
