ID30 is built on a two canted undulators providing two beams of +2.2mrad and -2.2mrad.

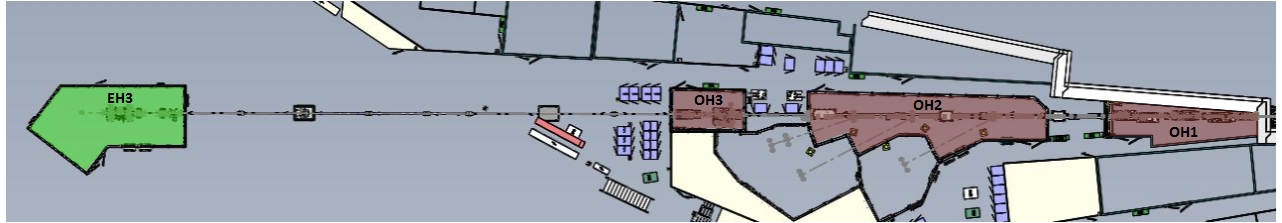

The -2.2mrad crosses OH1, OH2 and OH3 to provide X-rays for the ID30B MAD branch.

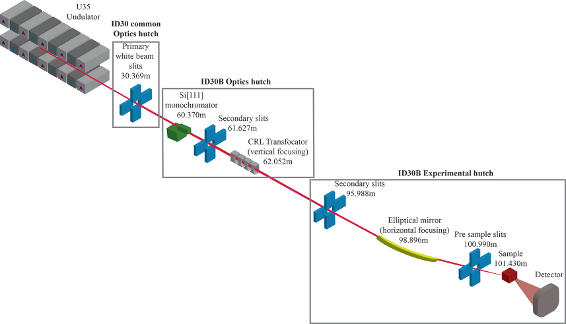

The optical layout for ID30B is shown below
